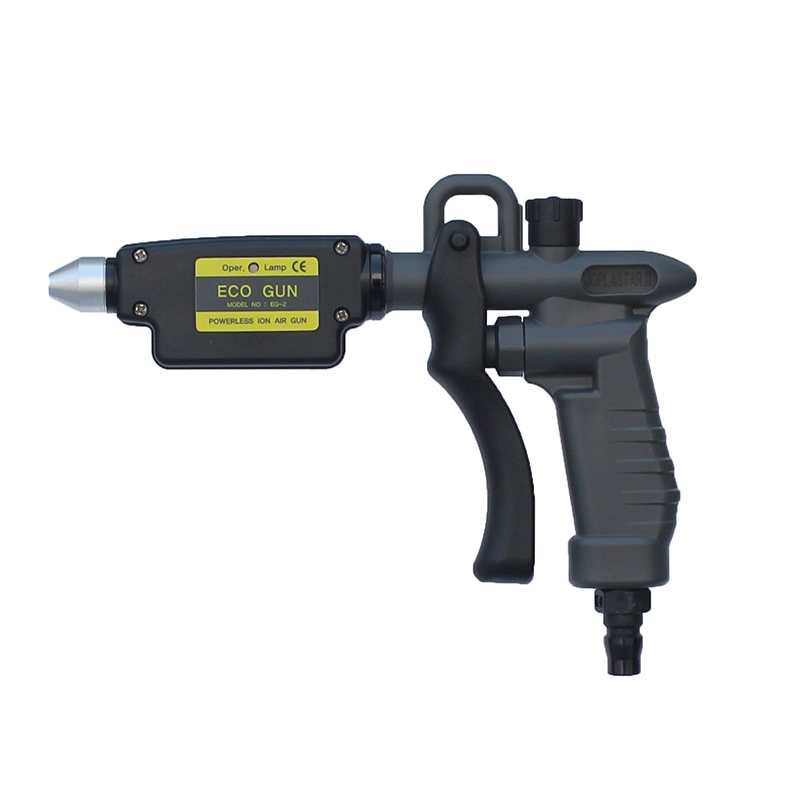

ECOGUN

ECOGUN is a self-generating antistatic gun that prevents dust adhesion and electromagnetic damage caused by static electricity during various production processes such as automobile painting, electronic parts production, printing and coating work, and plastic injection.

ECOGUN is a self-generating antistatic gun that prevents dust adhesion and electromagnetic damage caused by static electricity during

various production processes such as automobile painting, electronic parts production, printing and coating work, and plastic injection.

Play video

ECOGUN introduction video

Play video

ECOGUN broadcasting video

Play video

Car painting video

Features of ECOGUN

Powerless antistatic gun that does not require a separate external power source

The ECOGUN is a self-generating antistatic gun that does not require a power line or recharge.

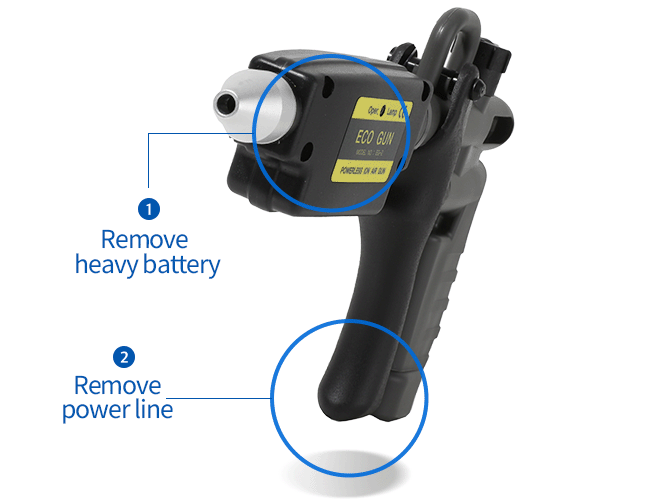

Compact size & Light-weight

By replacing the built-in battery with a generator motor, the volume is reduced to a compact size and the weight is minimized.

Recharge Method		Power generation motor
Wrist fatigue and poor work efficiency due to large volume and heavy weight .	➟	Minimize weight and volume

Power line method		Ion balancing circuit
Work environment restrictions due to the power line of the power supply	➟	Unrestricted working radius

Rechage method		Power generation motor
Wrist fatigue and poor work efficiency due to large volume and heavy weight	➟	Minimize weight and volume

Power line method		Ion balancing circuit
Work environment restrictions due to the power line of the power supply	➟	Unrestricted working radius

Various uses of the ECOGUN

Automotive painting

Static electricity attracts surrounding dust to the painted surface and interferes with the uniform spraying of paint, reducing painting quality.

The ECOGUN quickly generates uniform + and - ions to neutralize and remove static electricity on the painted surface.

ECOGUN can help improve the following painting defects

and lead to perfect painting quality.

	Clouding / Dark Edge	Color matching difficulties
	Sinkage, Mark	Runs

Clouding / Dark Edge	Color matching difficulties
Sinkage, Mark	Runs

Electronic product production and assembly field

Eliminates EMI, ESD, dust and foreign matter and prevents electrostatic shock during electronic product production and assembly.

More

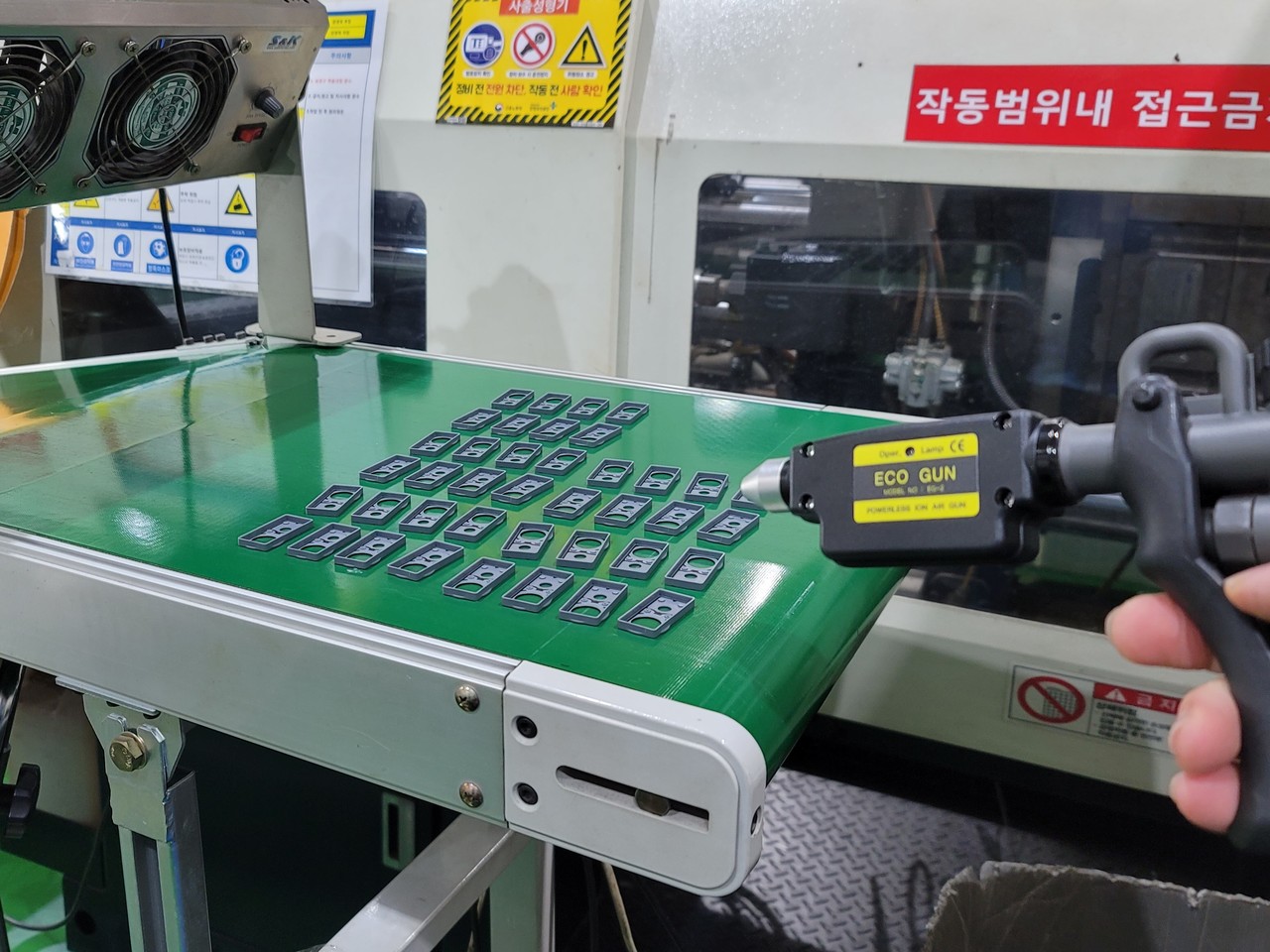

plastic injection field

Removal of dust and foreign matter from injection products and prevention of electrostatic shock.

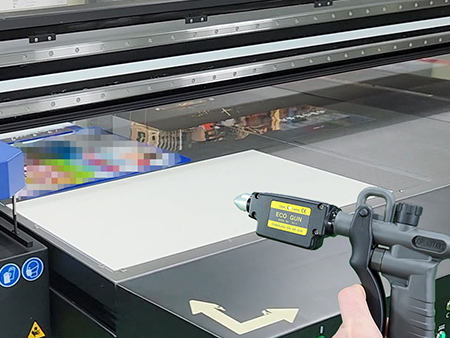

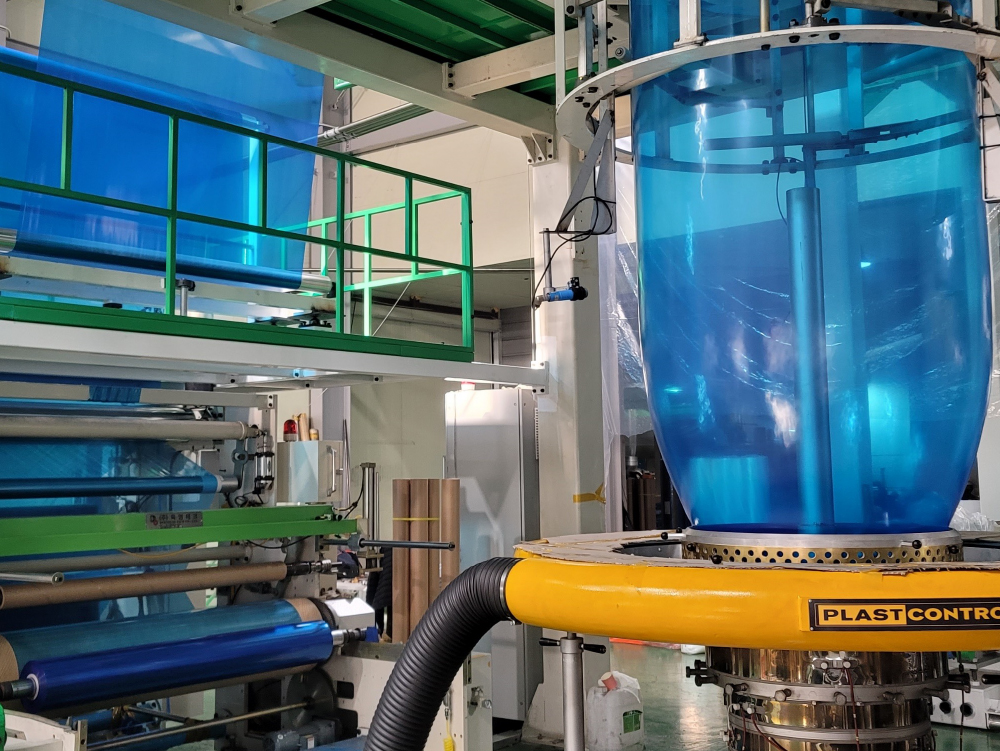

Printing and coating field

Prevention of ink splashing, smearing, and displacement due to static electricity.

Packaging field

Prevention of adhesion of dust caused by static electricity and mitigation of adsorption of wrapping materials.

ECOGUN award history

Best New Product

ECOGUN Won Best New Product award at KES2020 INNOVATION AWARD.

ECOGUN specification

Product name	ECOGUN	Air injection angle	25 deg
Model name	EG-2	Distance	10~50 cm
Size	207W X 162L X 31H	Life time	3,000 ~ 5,000hrs
Ion mode	AC 10khz	Temperature range	15 ~ 50℃
Decay time	avg 0.2sec (1,000v →100v)	Country of manufacture	South Korea
Ion balance	within ± 10v	Weight	about 200g
Air pressure	3~6 bar	A/S	www. uniceltec. com
Air injeciton volume	about 80~120 L/min

Product name	ECOGUN	Air injection angle	about 25 deg
Model name	EG-2	Distance	10 ~ 50cm
Size	207W x 162L x 31H	Life time	3,000 ~ 5,000 hours
Ion generating mode	AC 10khz	Temperature range	15 ~ 50℃
Decay time	avg 0.2sec (1,000v → 100v)	Country of manufacture	Republic of Korea
Ion balance	within ± 10v	Weight	200g
Air pressure	3 ~ 6 bar	A/S	www.uniceltec.com
Air injection volume	about 80 ~ 120 L/m
