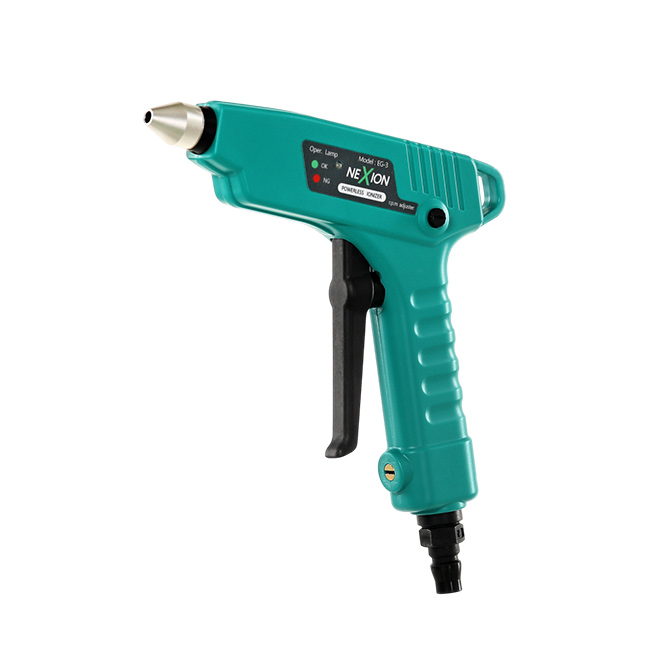

NEXION

| Self-Generating lonizer |

NEXION is a self-generating antistatic gun that doesn’t require power cord and charging

NEXION is a self-generating antistatic gun that doesn’t require power cord and charging


NEXION introduction video

Features of NEXION

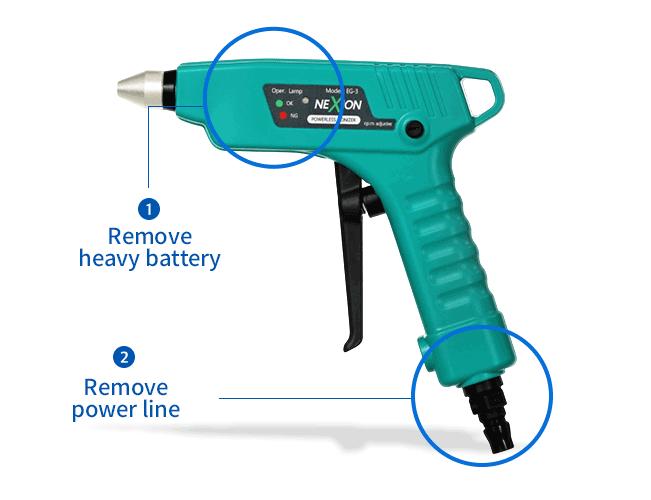

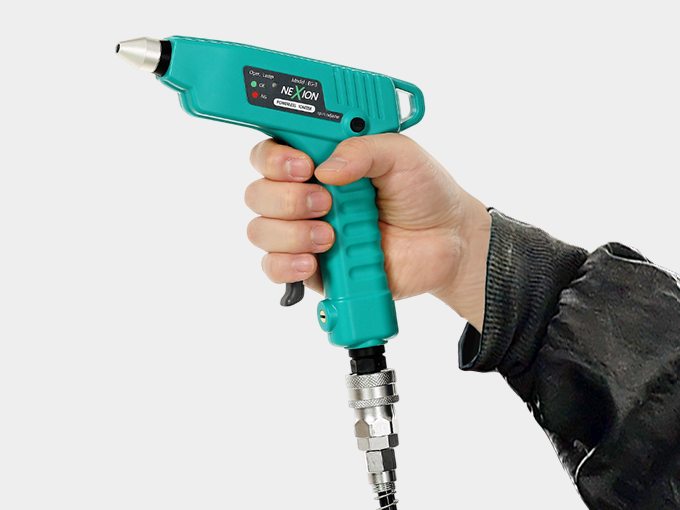

Self-generating ion gun

NO Power-cord     |     NO Battery     |     NO Charging

Lightweight in work, convenient in use

Works anywhere with compressed air, no cords or charging needed.

    Charging Method


Charging wait
causes work
delays


Bulky and
heavy, causing
fatigue and
inefficiency


Frequent
battery
replacement
costs

    NEXION Power Generating Motor


Power generation using compressed air
minimizes weight and size


    Power Input Method


Power cord
obstructs
workflow


Cannot be
used without
power outlet


Separate power
transformer
required

    NEXION Power Generation Circuit


Delivers uniform and stable ion generation and
provides an unrestricted working range
    Charging Method


Charging wait causes
work delays


Bulky and heavy,
causing fatigue and inefficiency


Frequent battery
replacement costs

    NEXION Power Generating Motor


Power generation using compressed air
minimizes weight and size
    Power Input Method


Power cord obstructs
workflow


Cannot be used
without power outlet


Separate power
transformer required

    NEXION Power Generation Circuit


Delivers uniform and stable ion generation and
provides an unrestricted working range
Enhanced durability for even greater robustness

Durability enhanced with BLDC motor and reinforced flexible flow structure.

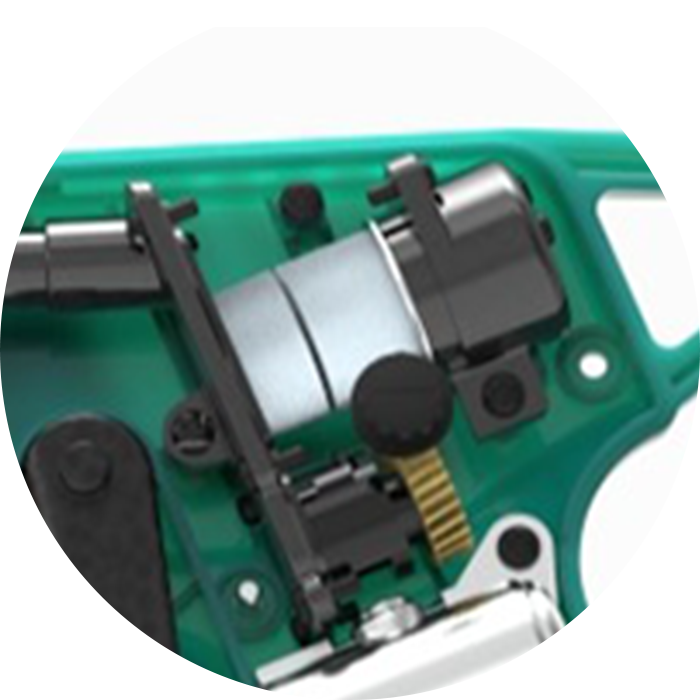

    NEXION Brushless Motor
Durable BLDC motor

High power generation output
Stable machine lifespan
High energy conversion efficiency

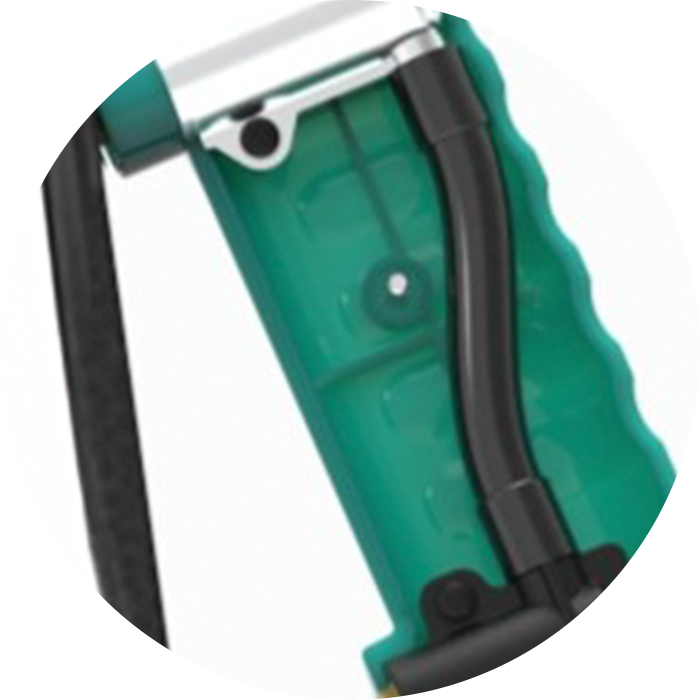

    NEXION Flexible Flow Structure
Reinforced flexible flow structure

Shock & vibration resistant materials
 Minimized damage from high air pressure
    NEXION Brushless Motor
Durable BLDC motor

  • High power generation output
  • Stable machine lifespan
  • High energy conversion efficiency



    NEXION Flexible Flow Structure
Reinforced flexible flow structure

  • Shock & vibration resistant materials
  • Minimized damage from high air pressure
Various uses of the NEXION

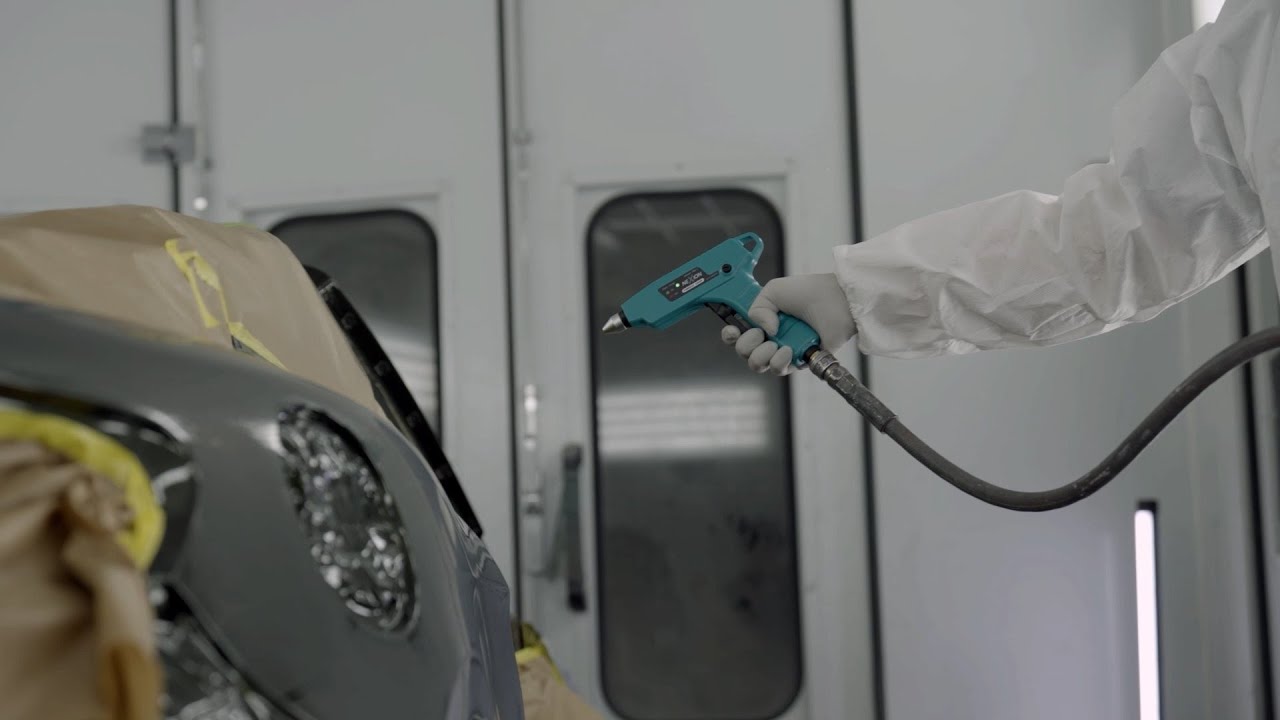

Automotive painting

Static electricity attracts surrounding dust to the painted surface and interferes with the uniform spraying of paint, reducing painting quality.

NEXION quickly generates uniform + and - ions to neutralize and remove static electricity on the painted surface.

NEXION can help improve the following painting defects

and lead to perfect painting quality.


Clouding /
Dark Edge



Color matching
difficulties



Sinkage, Mark

Runs

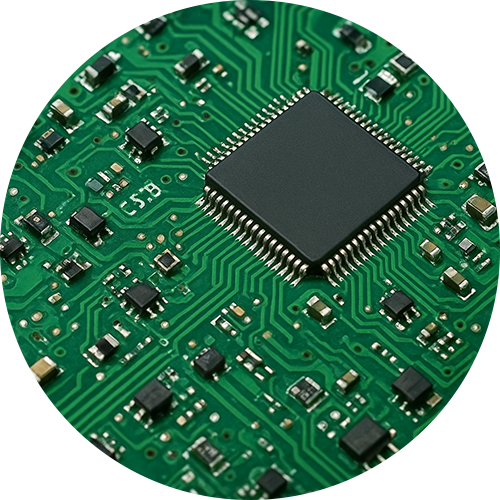

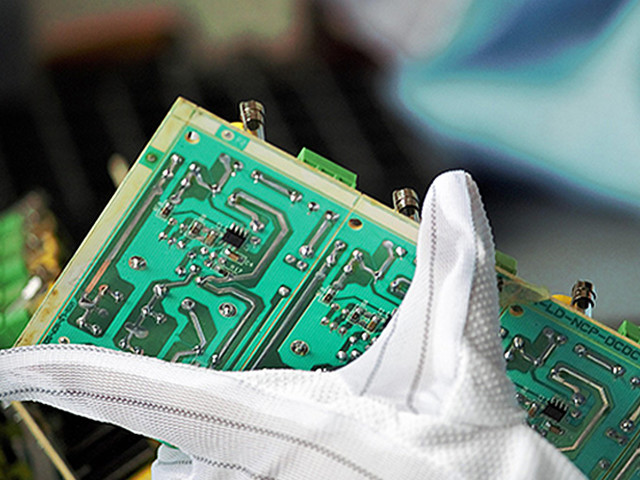

Electronics manufacturing

Prevents IC damage from EMI/ESD while protecting operators from static shocks.

Printing/Coating

Prevents static-related
ink splatter and smearing

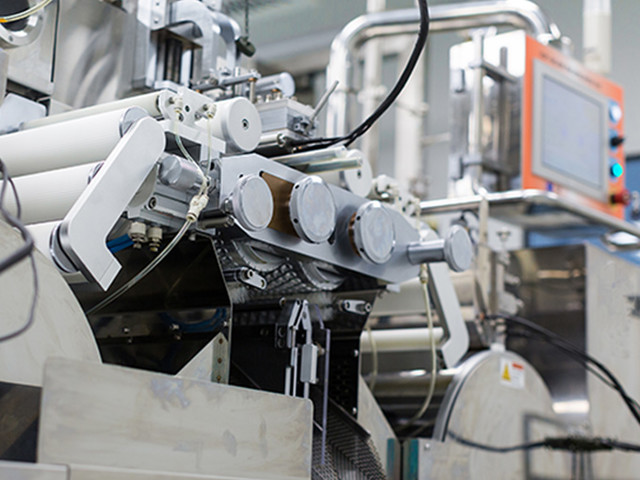

Plastic Processing

Prevents dust on parts and protects operators from static shocks.

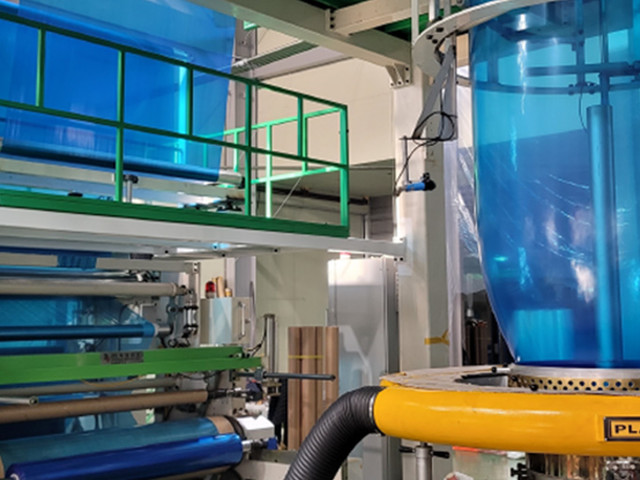

Film / Packaging

Prevents static-related particle adhesion and keeps films from sticking together.

NEXION award history




Best New Product

Won the ‘Best New Product’ award at KES 2020 and KES 2024 Innovation Awards.

NEXION user guide


STEP 01


Check Components

NEXION, Holder, Nipple (JPN/EUR)

STEP 02


Connect the Coupler

Connect the air hose to NEXION.

STEP 03


Static Elimination

Pull the trigger to release ions.

NEXION specification


Model
name
NX-1Air
injection
angle
about
25 deg
Size180W x
180L x
26H
Distance10~50 cm
Ion
mode
AC
10khz
Life time10,000 ~
15,000hrs
Decaytime0.2sec
(1,000v → 100v avg)
Temperature
15 ~
50℃
Ion
 balance
within
± 10v
Country
of
manufacture
Republic
of Korea
Air
 pressure
3~6 bar
Weight230g
Air
injeciton
volume
about 80~120 L/minA/Swww.
uniceltec.
com


Model name
NX-1
Air injection angle
about 25 deg
Size
180W x 180L x 26H
Distance
10 ~ 50 cm
Ion generating mode
AC 10khz
Life Time
10,000 ~ 15,000hrs
Decay time
0.2sec (1,000v → 100v avg)
Temperature
15 ~ 50℃
Ion balance
within ± 10v
Country of manufacture
Republic of Korea
Air pressure
3 ~ 6 bar
Weight
230g
Air injection volume
about 80 ~ 120 L/m
A/S
www.uniceltec.com

Download catalog    ▏


Download catalog     ▏


Certification
